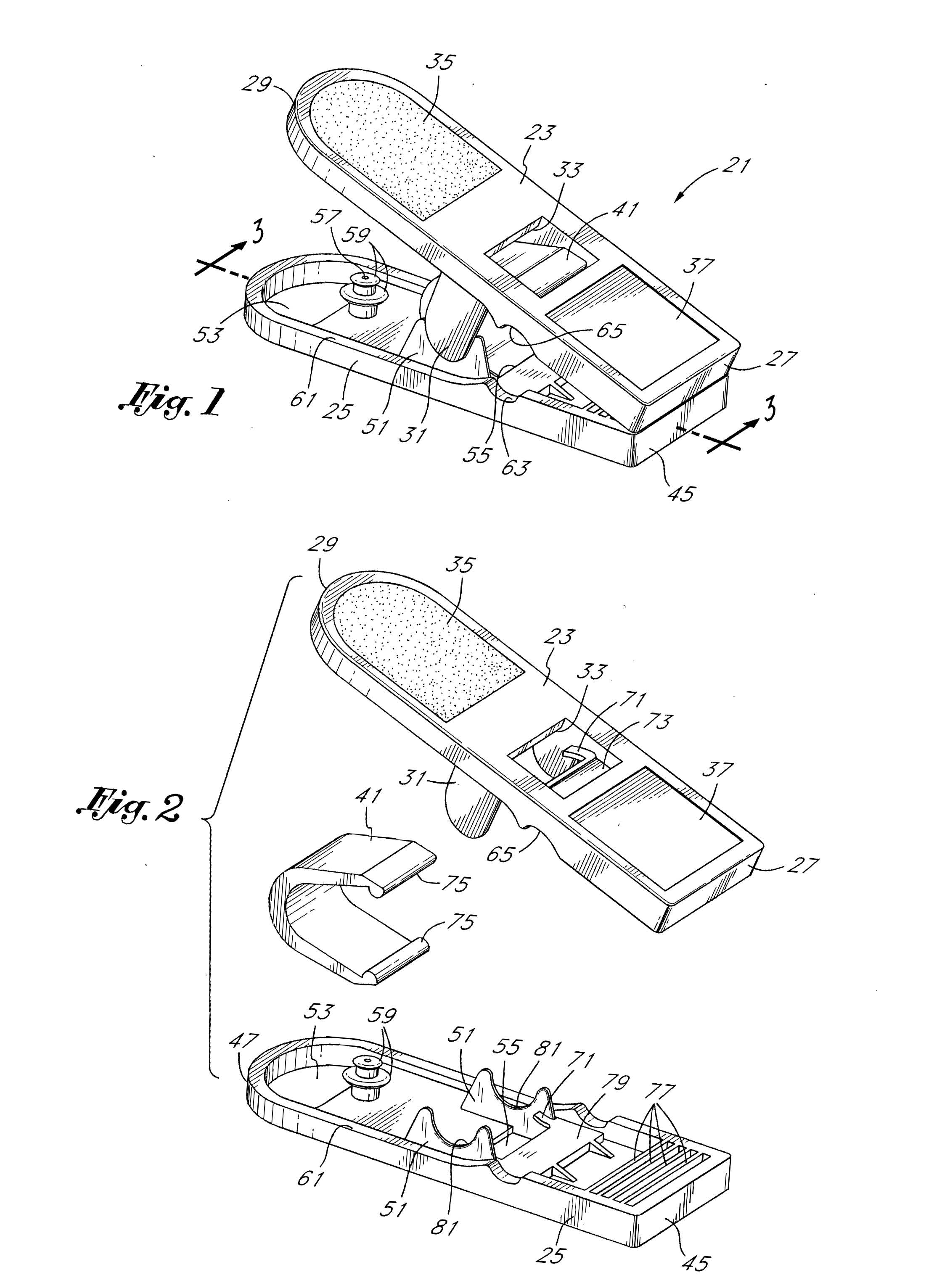

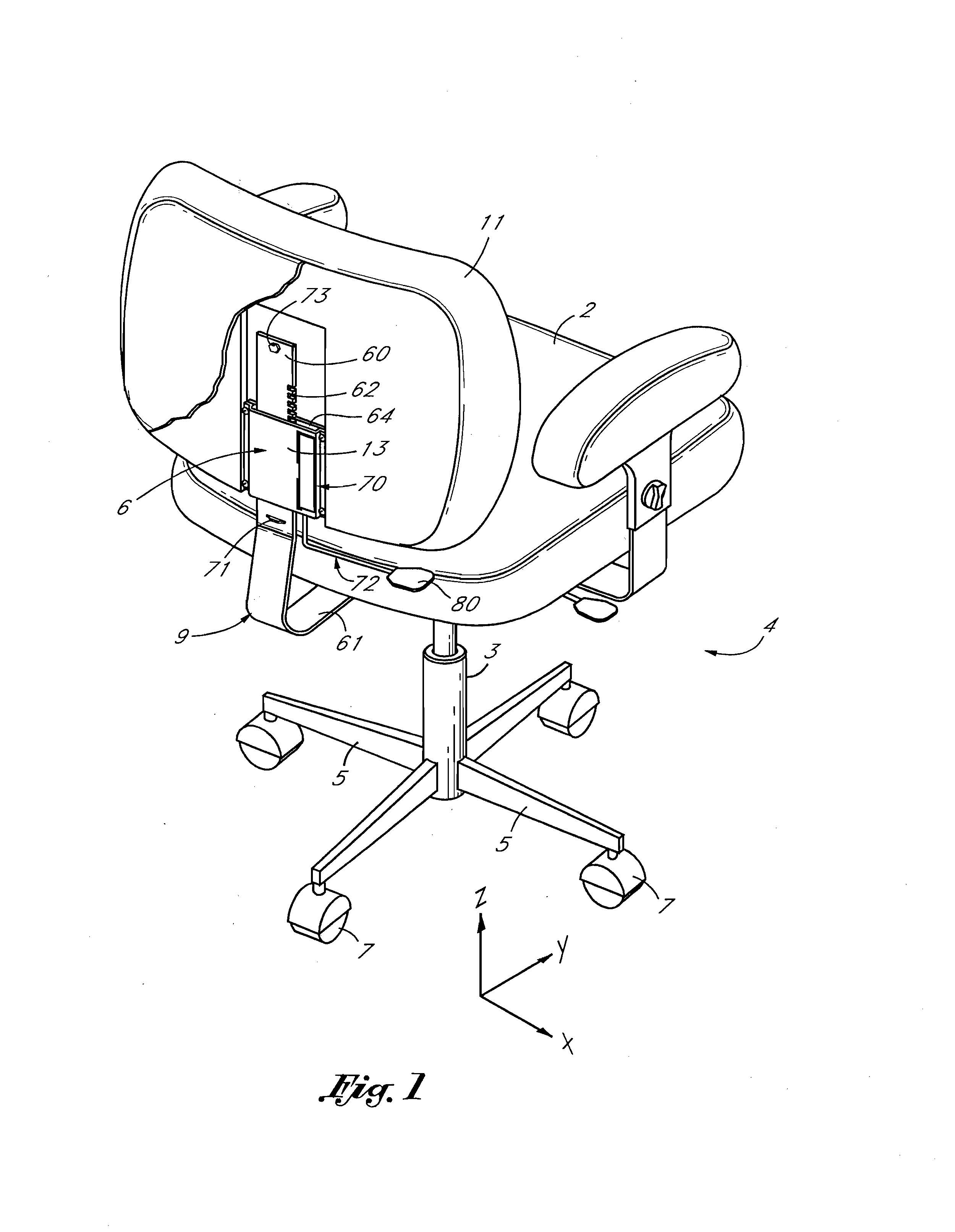

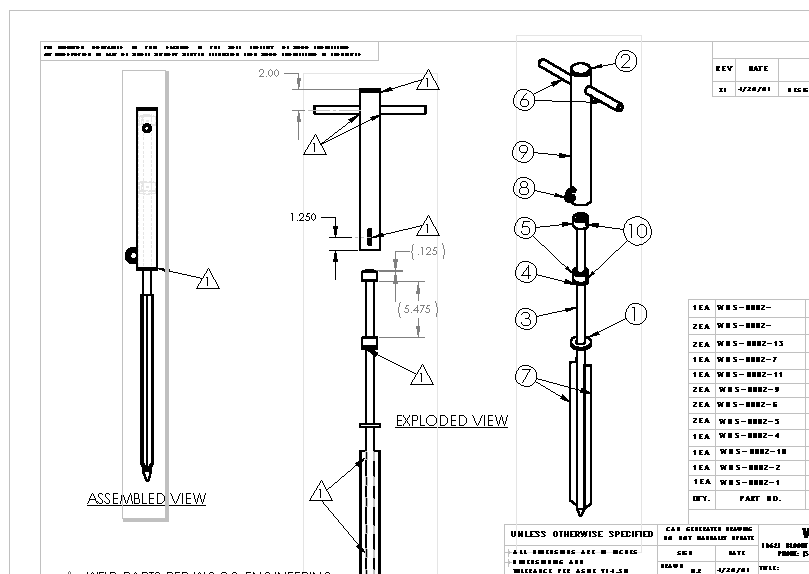

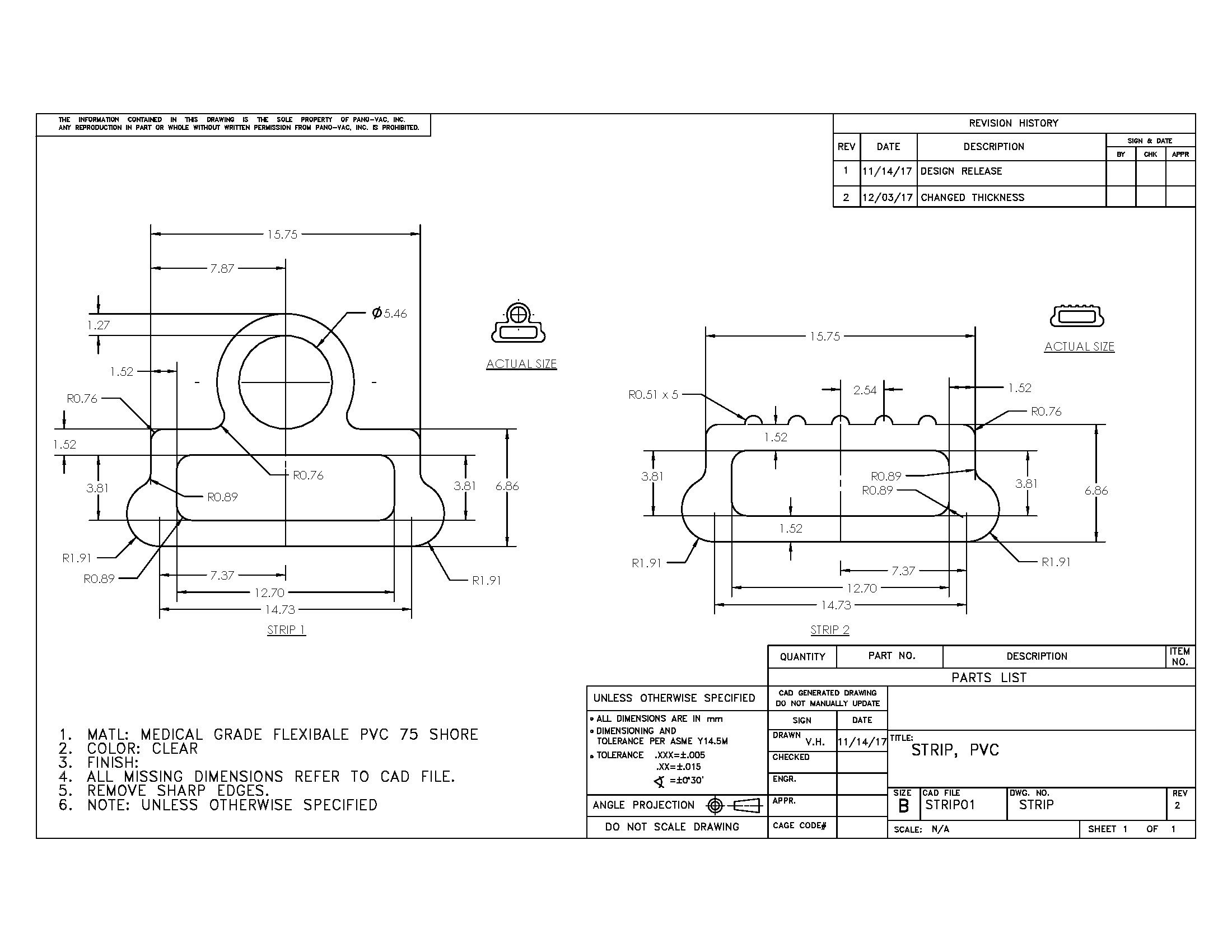

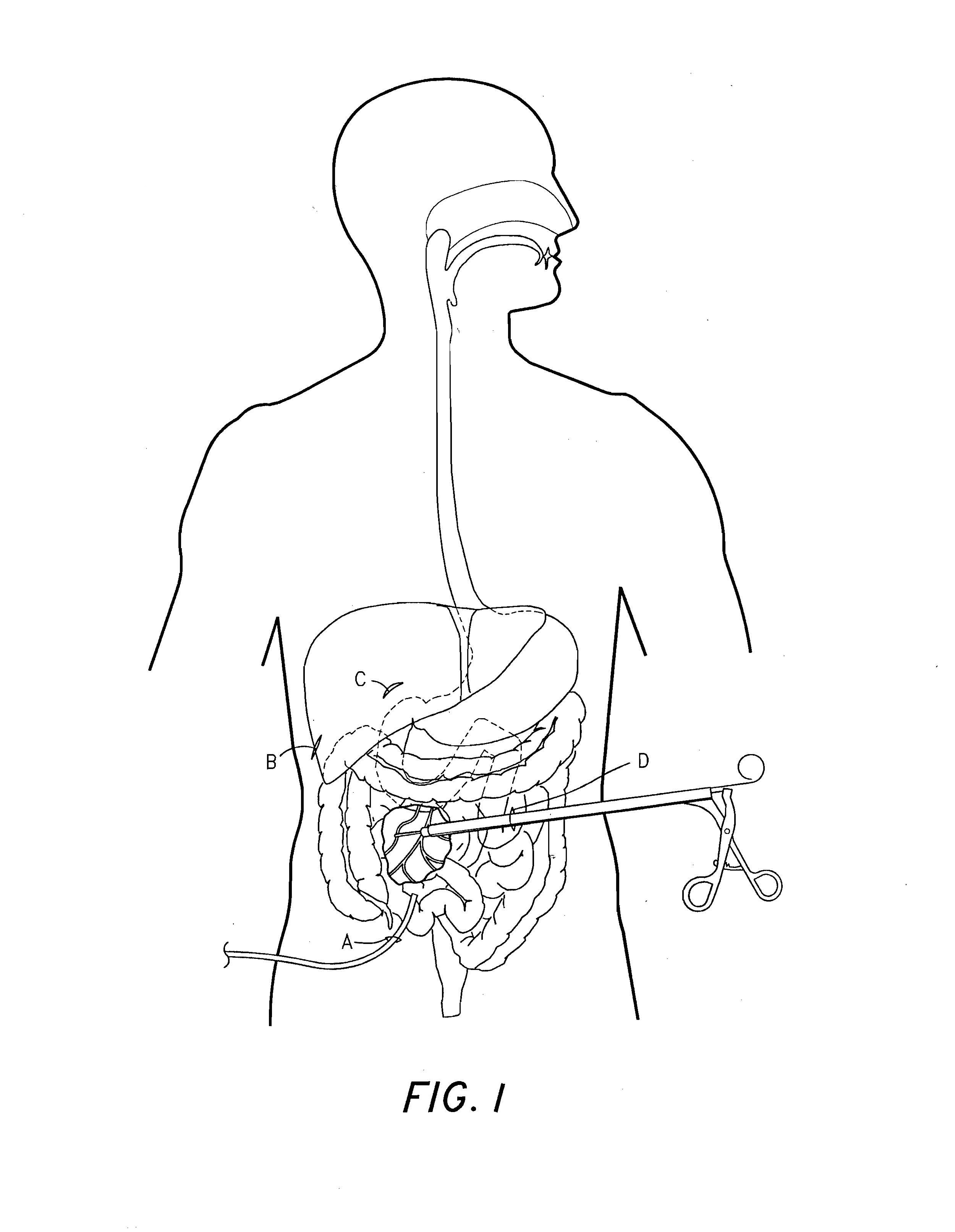

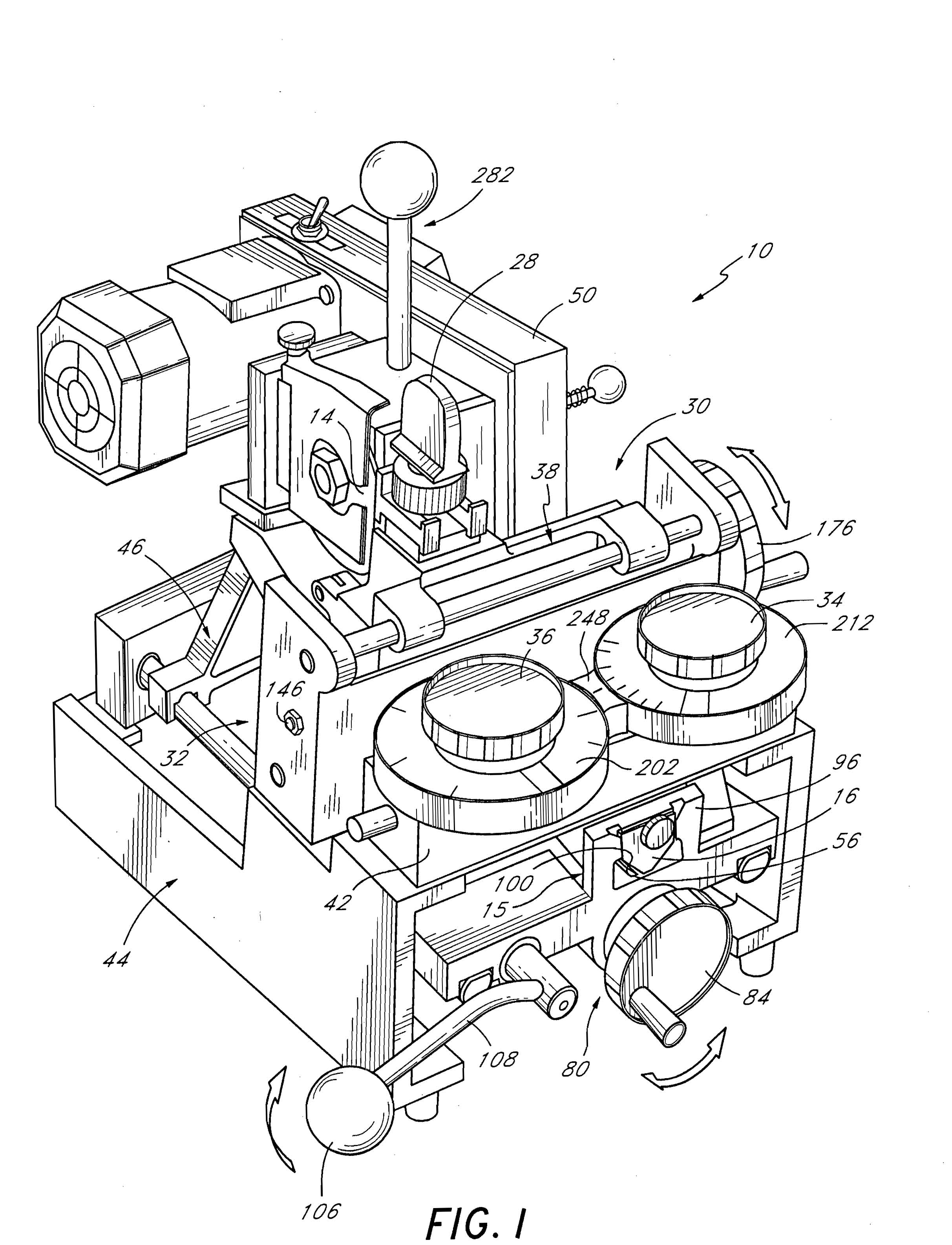

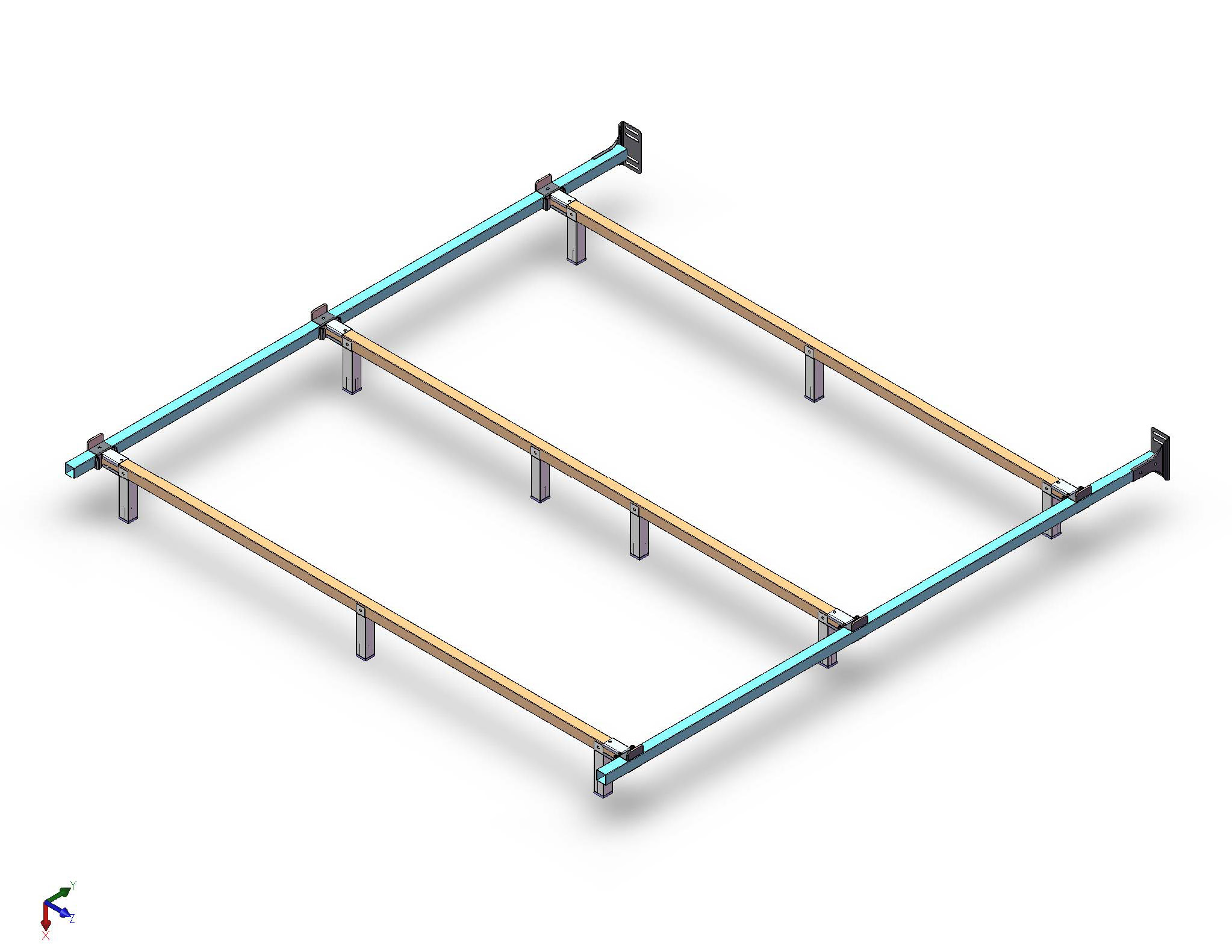

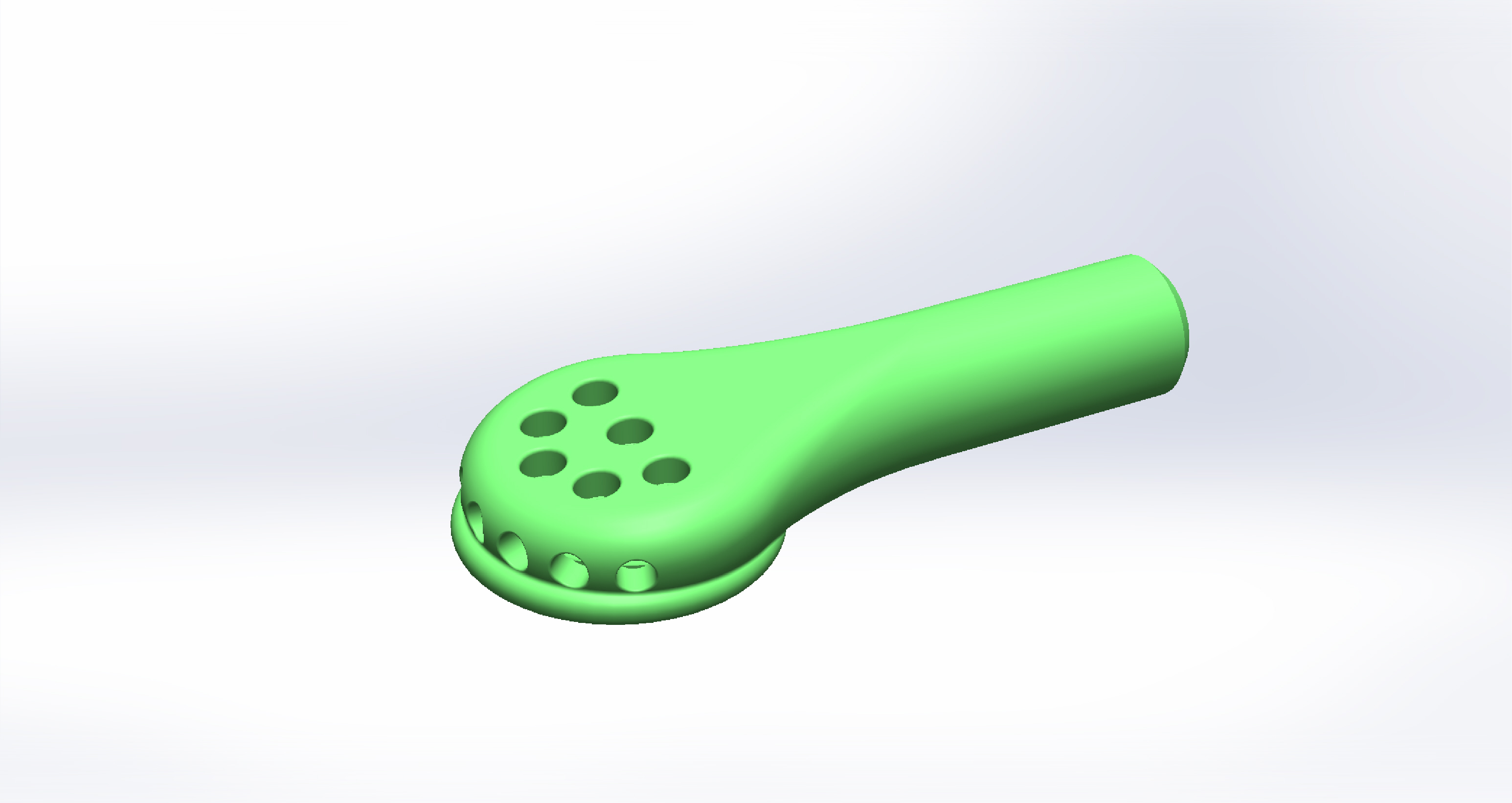

Our team uses the latest technology to provide you with the best engineering and drafting solutions. We prepare patent drawings in CAD programs based on client sketches, verbal instructions, client electronic files, and/or photographs. We work closely with you to generate 3D assembly models of your product in our CAD system. Once you approve the 3D models, we extract the parts from the 3D model and make 2D blueprints for production and documentation. With your permission, we can also submit the 3D CAD files directly to your manufacturer for prototypes and production.
CAD Illustration Services
